Fully Automatic Toroidal Winding Machine
Key Features
- Fully Automatic Toroidal Winding Machine
- Operator Free
- Single Wire, Bifilar, Trifilar, Quadfilar to Twisted Wire Applications
- Direct Winding onto Cores
- Multi-Level Progressive Winding for your most complicated applications
- Able to wind up to 0.6mm Heavy Wire Applications
The Fully Automatic Toroidal Winding Machine ATW-1 is proudly presented by Jovil Universal Zhongshan Ltd. The latest revelation operator-free ATW-1 is designed for high volume toroidal transformer production, saving thousands of dollars in manpower hours.
With its state-of-the-art design, the ATW-1 is able to wind single, bifilar, trifilar, quadfilar to twisted wire applications. The use of a winding plate system instead of the tradition shuttle system, the ATW-1 can achieve a finished inner diameter of 1mm, completing most miniature coil applications. ATW-1 is a miracle that must be seen to be believed.

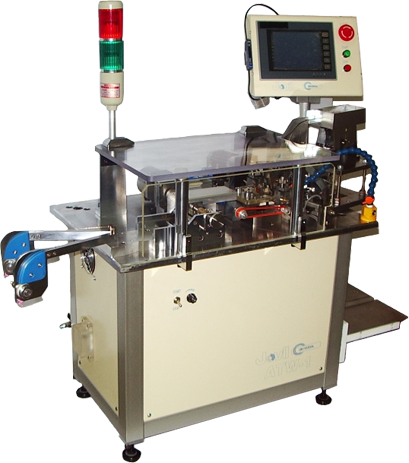

Model ATW-1
For More Information
Complete the form below to know more about Fully automatic Toroidal Winding Machine Model ATW-1
Submit your information now for us to know more
about your applications and requirements. We will get back to you most efficient and cost-effective set-up.
Specification/Capabilities
- Maximum Wire Size: 0.5mm (#24AWG)
- Minimum Wire Size: 0.06mm (#42AWG)
- Maximum O.D: 30mm (1.180")
- Minimum O.D: 2.8mm (0.110")
- Minimum I.D: 0.8mm (0.030")
- Maximum Height: 10mm (0.394")
- Wire Spacing: Programmable with controller
- Segment Winding: Programmable with controller
- Progressive Winding: Programmable with controller
- Rotator Motor: Hybrid Stepper Motor
- Main Motor: Servomotor
- Power Requirement: 220V 50/60HZ
- Winding Speed: Variable to 480TPM
- Carted Dimension: 1000X600X1160 mm
- Crated Weight: 120KG
We, Jovil Universal Zhongshan have done the latest revelation in Winding Technology and much sort after by the coil winding Industry with the birth of the hands free toroidal coil production system, dreams of the coil winding industry have virtualized.
Being an impeccable state of the art system is capable of winding the most
unimaginable miniature toroidal coils. The latest invention increases the production output coupled with unmatchable quality standards. The technological phenomenon eliminates the need for operators, thus saving thousands of dollars in manpower hours.
